Wiring for the TBS (Team Black Sheep) Unify Pro 5G8 HV Race Edition.

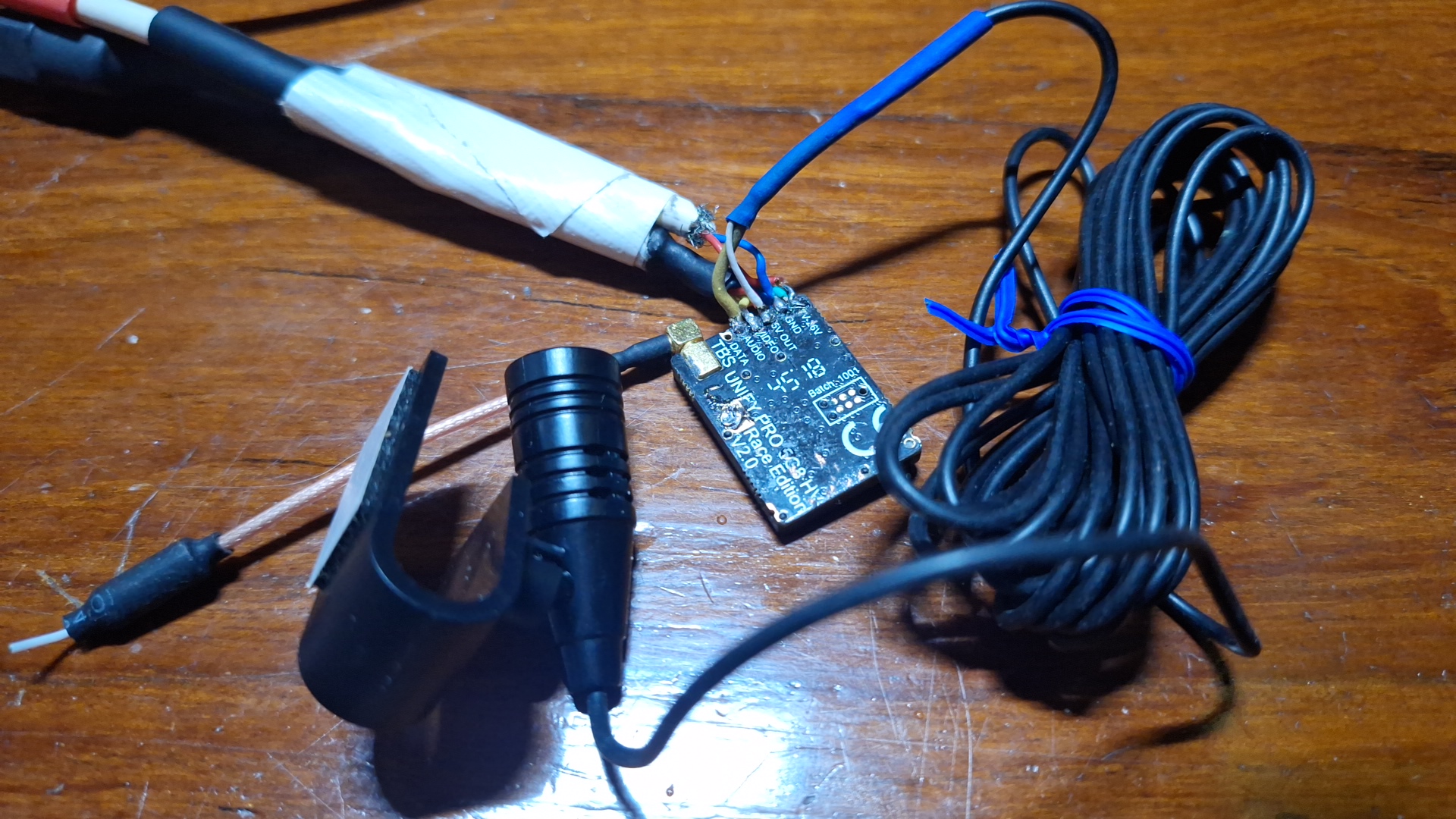

The TBS Unify VTX modules include an audio input apart from their data / smartaudio connection. This photo shows the physical wiring. I should include a wiring diagram, but alas I am lazy. In a nutshell the microphone has to be powered from the 5v out port. I’ve used a mono microphone which is usually used for hands free mobile phone car kits. If I try an electret microphone I’ll post it here. It worked well enough to hear air noise clearly and I could also hear music as well. I used Aomway Commander V1 FPV goggles from about 2019 with standard old wired Apple stereo earbuds.
